| 詳細技術參數： |

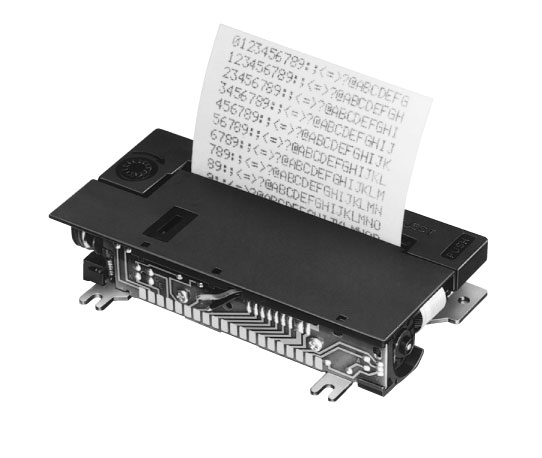

梭式點陣打印機M-190G系列
全系列產品型號:M-150II M-164 M-190 M-190G M-192 M-192G M-195
M-190G采用新型ERC-40耐用色帶，能打印200萬個字符
超小型、高可靠性
M-190G該系列超小型打印機性能優異，重量輕，可支持廣泛的應用場合。
適用于小型設備
由于它們體型緊湊而又耗電少，M-190G是很多打印應用設備的理想機型，從手持終端到便攜式計算機和小型測量?jī)x器均可使用。
電池供電
M-190G打印機對電壓要求極低，可用電池來運行。
| Model |
M-190G |
M-192G |
| Printing Method |
Shuttle impact dot matrix |
| Printing Format |
|
| Font |
5 x 7 |
| Column capacity |
24 columns |
40 columns |
| Character size |
1.7 (W) x 2.6 (H) mm |
1.1 (W) x 2.6 (H) mm |
| Line spacing |
3.7 mm (In case of 5 x 7 font and 3 dots / line paper feed) |
| Column spacing |
2.0 mm |
1.2 mm |
| Number of total dots |
144 dots / line |
240 dots / line |
| Printing Speed |
2.7 lines / sec. ± 20% |
1.8 lines / sec.± 20% |
| Print head |
|
| Voltage |
5.0 ± 0.5 VDC |
| Peak current |
Approx. 2.5 A / solenoid (at 5 VDC) |
| Motor |
|
| Voltage |
5.0 ± 0.5 VDC |
| Mean current |
Approx. 0.35 A (at 5 VDC) |
| Paper |
Roll paper |
| Dimensions |
57.5 ± 0.5 mm (W) x dia 83 mm max. |
| Total Thickness |
0.06 to 0.085 mm |
| Copy Capability |
Original and one copy |
| Ribbon Cassette |
ERC-09 / ERC-22 / ERC-40 |
| Operating Temperature |
-10 to 50℃(using ERC-22, ERC-40) |
| Reliability |
|
| Print head Life |
- |
| MCBF |
1,500,000 lines |
1,000,000 lines |
| Printer Life |
2,250,000 lines |
1,500,000 lines |
| Overall Dimens ions |
91.0 (W) x 46.9 (D) x 15.8 (H) mm |
| Mass (without options) |
Approx. 100 g | |
